I. Project Overview

Located in Malaysia, this massive 5,000 square meters purification facility is specifically designed for the high-end biopharmaceutical and medical device manufacturing industries. As a globally recognized cleanroom manufacturer and a highly reliable cleanroom supplier, Wonclean provided a comprehensive, turn-key solution covering structural design, modular material supply, and systemic integration.

II. Design Standards & Parameters

The facility is engineered to strictly comply with international pharmaceutical standards and rigorous environmental control requirements:

• Cleanliness Level: ISO Class 8 (100,000) / GMP Grade C and D.
• Temperature Control: 16℃ - 28℃ (Highly adaptable to local tropical climates).
• Relative Humidity: 40% - 70% RH.
• Safety Systems: Integrated state-of-the-art fire sprinkler system to meet global industrial fire safety codes.

III. Core System Configuration

To ensure a stable and compliant manufacturing environment, the project integrates top-tier architectural and HVAC systems:

• Architectural Enclosure: The partition walls are constructed using premium cleanroom wall panel systems (incorporating Rockwool, PIR, PU, and Aluminum Honeycomb cores) with a 50mm thickness, achieving a 1-hour fireproof rating. The ceiling utilizes a robust cleanroom ceiling panel structure with galvanized steel framing and insert connectors to guarantee absolute airtightness.
• Flooring System: Full coverage of ESD Vinyl Tiles (Anti-static flooring) to continuously dissipate static accumulation, safeguarding sensitive biopharmaceutical processes and medical electronic components.

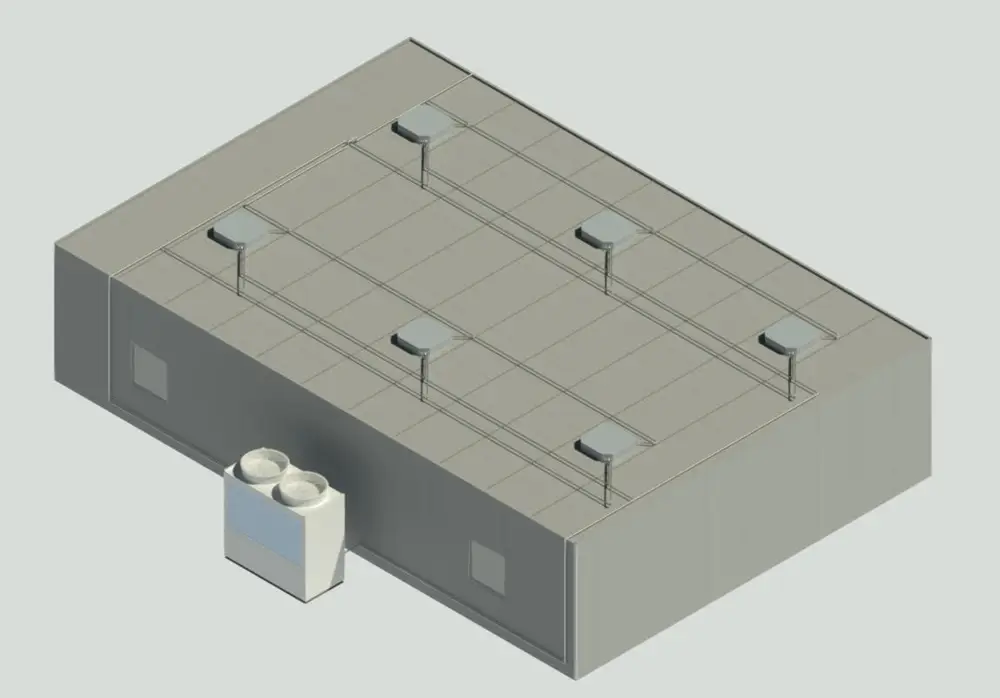

• HVAC & Purification: Designed with an advanced Cassette Air Conditioning (VRF/VRV Multi-split) system. Combined with HEPA filtration and precise pressure differential control, it efficiently maintains the required ISO 8 particulate levels, ensuring optimal air circulation across the massive 5,000 sqm space.

IV. Construction Highlights & Advantages

• Modular & Flush Design: Extensive use of R50 arc corner profiles, flush double-view glass windows (with anti-moisture desiccant), and airtight double steel doors ensures a seamless, easy-to-clean environment with zero dust accumulation dead angles.
• Energy Efficiency: The multi-split cassette HVAC system offers decentralized, energy-saving temperature control tailored for large-scale operations, significantly reducing daily operational power consumption compared to traditional AHU systems.
• Export & Delivery Standards: Adhering to FOB Shanghai terms, all high-value panels and electromechanical equipment (such as distribution boxes and 48W LED cleanroom lights) are strictly packed with customized steel pallets and wooden boxes, ensuring zero-damage overseas maritime delivery.
