clean room injection panel: Precision-engineered for mission-critical environments

With over two decades of hands-on experience delivering cleanroom solutions across global semiconductor fabs, biologics facilities, and high-precision manufacturing sites, I’ve seen how a single component—like the clean room injection panel—can define system integrity, long-term performance, and compliance confidence. This isn’t just another wall or ceiling element. It’s a fully integrated, factory-calibrated structural and sealing solution designed to eliminate on-site gaps, thermal bridging, and particle entrapment points that compromise ISO Class 3–8 environments.

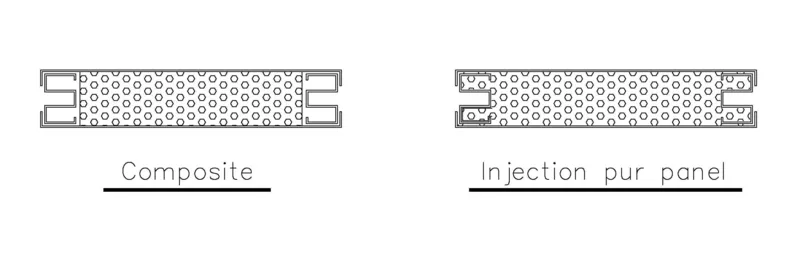

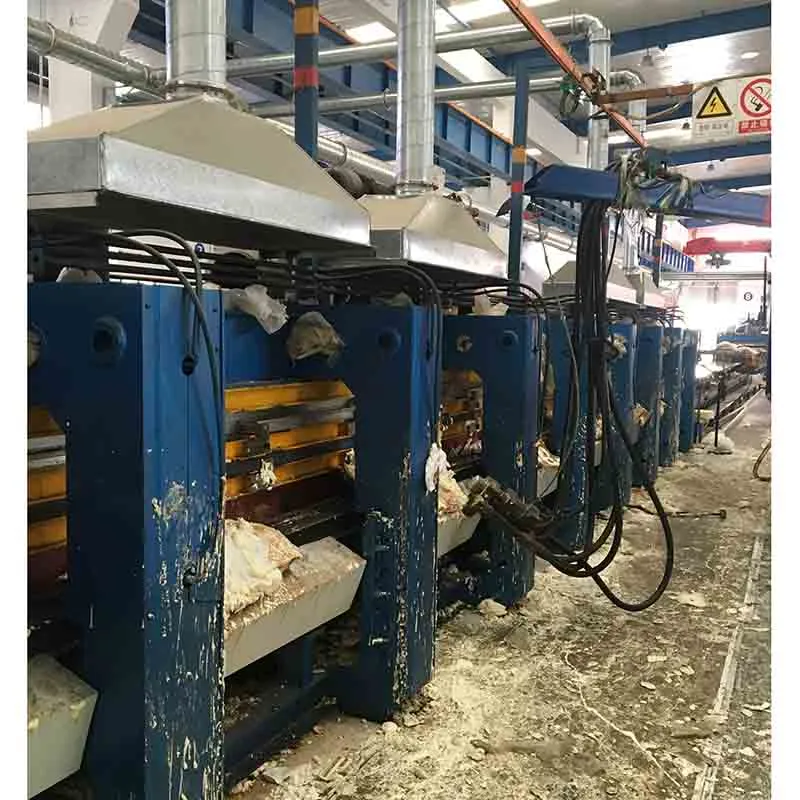

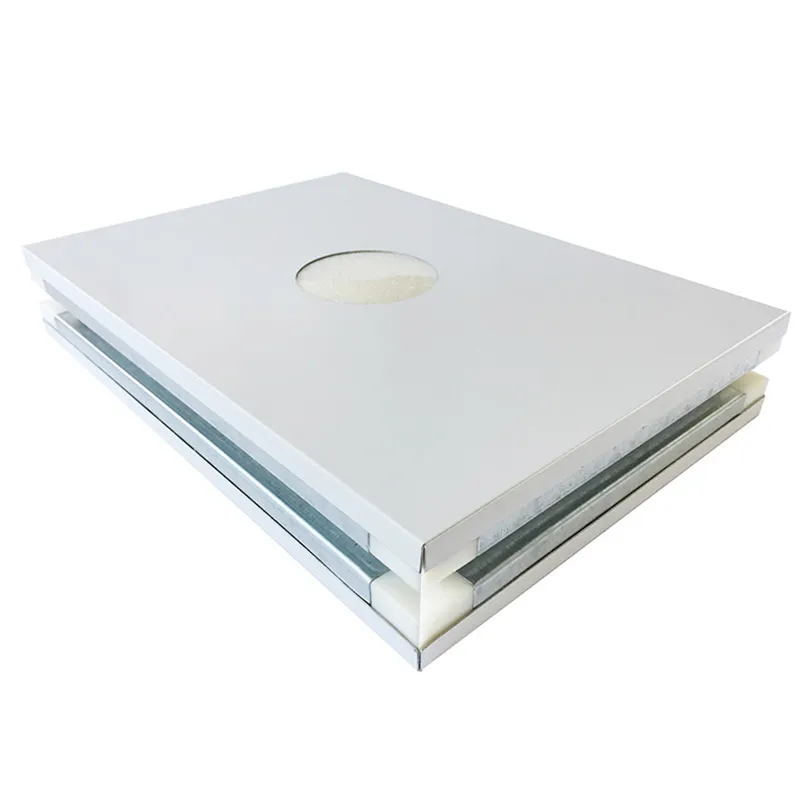

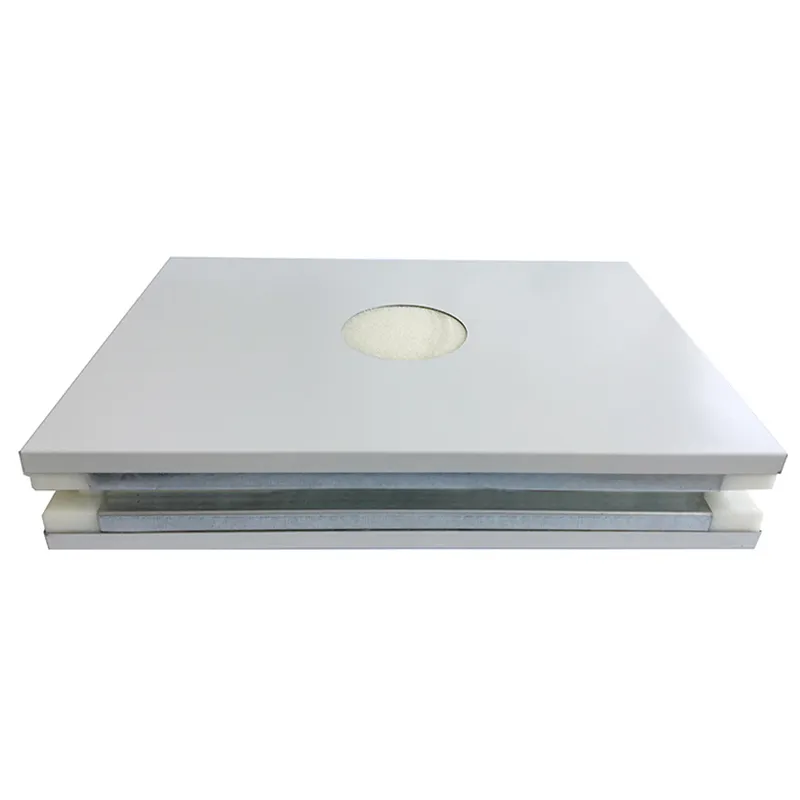

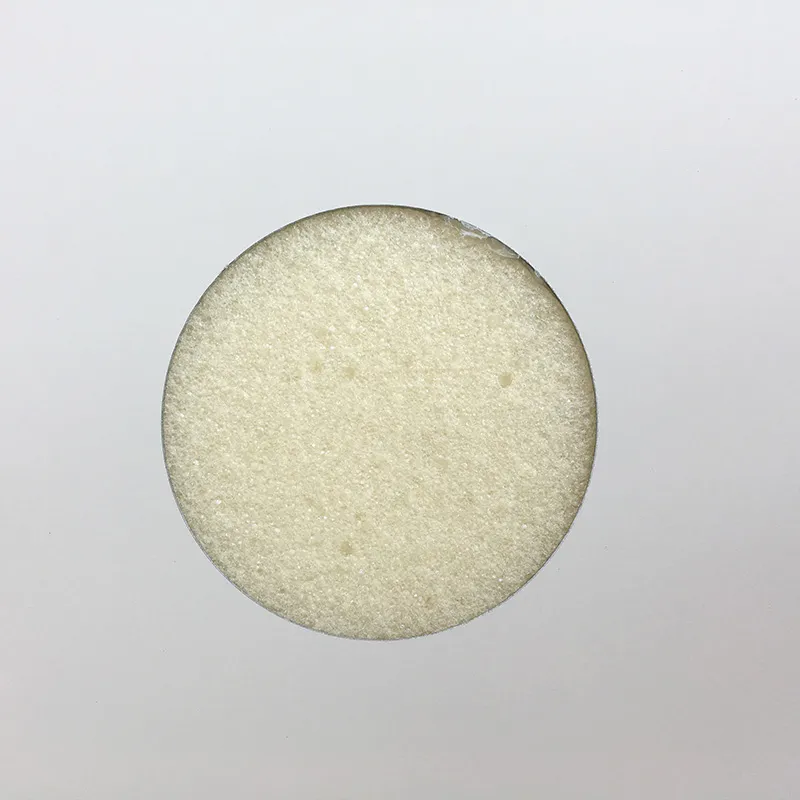

Our panels are engineered as part of a broader ecosystem—compatible with Malaysia prefabricated cleanrooms, scalable within Malaysia modular cleanroom systems, and optimized for rapid integration with Modular cleanroom ceiling panels. Unlike standard sandwich panels, our clean room injection sandwich panel uses a continuous polyurethane foam core injected under controlled pressure into a pre-assembled aluminum frame—ensuring zero voids, consistent density (42±2 kg/m³), and dimensional stability across temperature swings from 18°C to 30°C. That’s why it’s specified in clean room in semiconductor manufacturing where static control, outgassing limits (<5 µg/g total volatile organics), and non-shedding surfaces are non-negotiable.

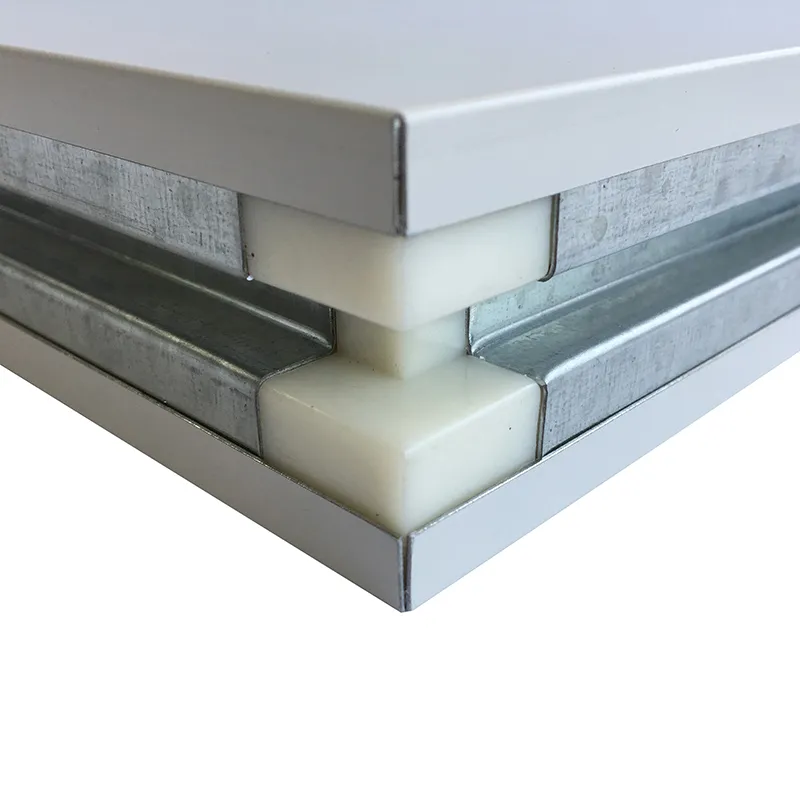

We’re not just a clean room injection manufacturer; we’re partners in validation-readiness. Every panel batch includes material traceability, surface resistivity test reports (10⁴–10⁶ Ω/sq), and fire performance certification (ASTM E84 Class A). Installation is simplified through interlocking tongue-and-groove edges and embedded T-slot channels—enabling seamless integration with clean room interlock door frames, utility raceways, and lighting supports. For engineering teams managing multi-vendor deployments, this means fewer field adjustments, tighter schedule control, and lower total cost of ownership over 15+ years of service life.

Technical Specifications & Compatibility Matrix

Real-World Integration Across High-Stakes Sectors

In clean room laboratory design for biologics process development, these panels form the backbone of segregated fill-finish suites—where separation between Grade C and Grade A zones demands absolute gasket-free continuity. Their low outgassing profile meets USP <87>/<88> requirements, and the smooth finish resists biofilm adhesion during CIP cycles. In clean room industry projects for automotive ADAS sensor calibration labs, the panels’ dimensional stability prevents micro-cracking at expansion joints—critical when ambient humidity must stay below 30% RH year-round.

For clean room installation in aerospace composite curing rooms, thermal performance matters more than ever: the 75 mm variant maintains ±0.3°C uniformity across 12 m spans—reducing HVAC load by up to 18% versus traditional stud-and-drywall builds. In data center colocation modules targeting Tier IV uptime, the panels integrate directly with clean room interlocked door controllers to enforce access sequencing—preventing simultaneous door openings that disrupt pressure cascades. As one of the few clean room interlock door suppliers offering full mechanical-electrical co-engineering, we ensure panel cutouts align precisely with actuator footprints and sensor fields.

Food & beverage clients use the same clean room injection panel in ready-to-eat (RTE) packaging lines—where hygiene zoning (e.g., raw vs. cooked areas) requires validated physical barriers. The stainless steel-faced option complies with FDA 21 CFR Part 110 and passes repeated steam cleaning at 121°C. In renewable energy battery cell assembly, panels support clean room laminar flow hoods rated for ISO 5 operation while accommodating embedded ionization bars and static monitoring nodes—all without compromising structural rigidity.

Whether you're specifying for a new clean room laboratory in Penang’s biomedical corridor or upgrading an existing clean room in semiconductor manufacturing facility in Kulim, our panels deliver repeatable quality—not promises. We don’t sell “off-the-shelf” solutions. We deliver documented, tested, and field-proven components aligned with your validation plan, timeline, and operational risk profile. If your next project demands certainty—not compromises—you’re speaking to the right clean room injection manufacturer.
